Microscope 4 Dental

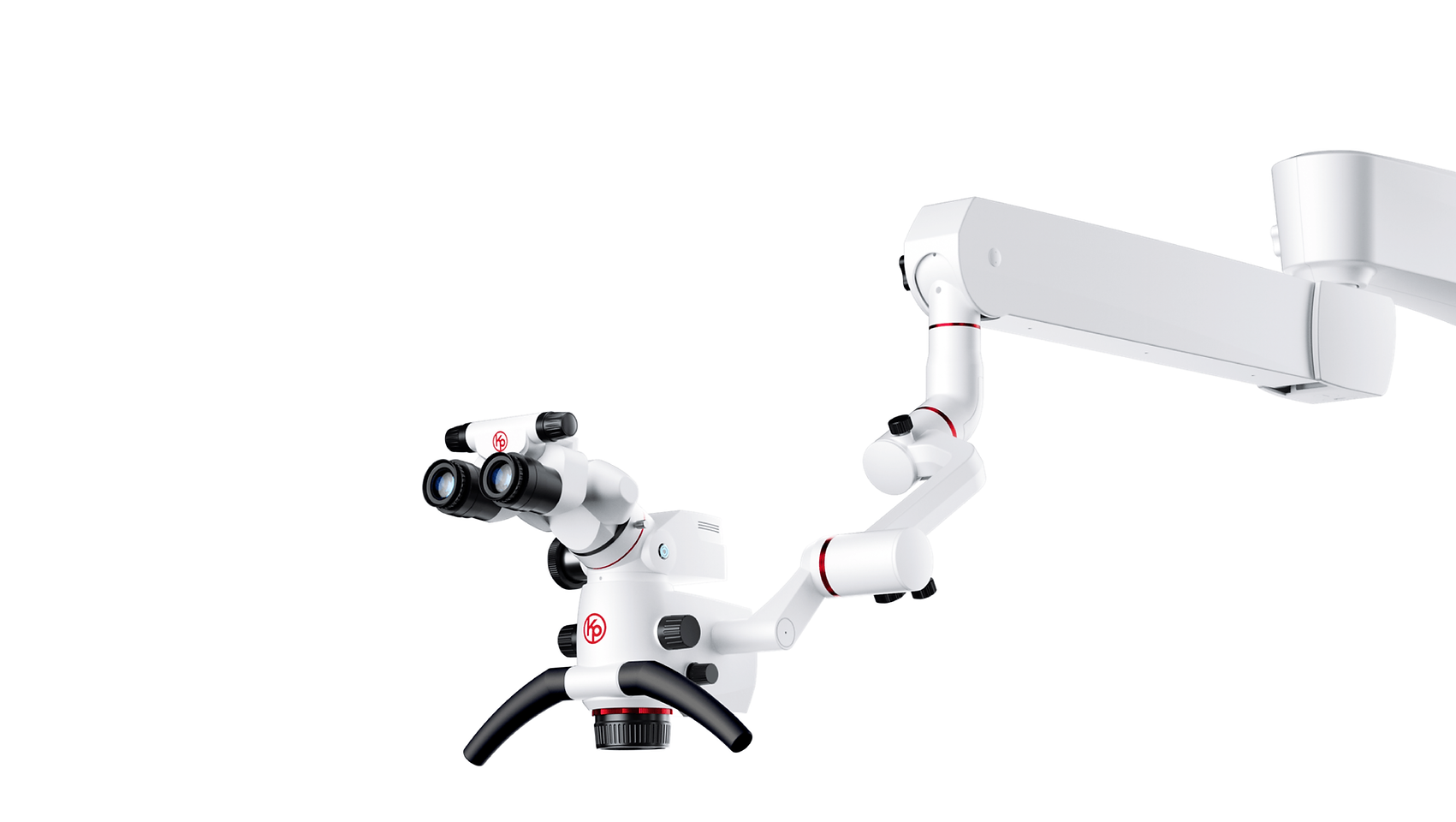

German Super Balancing Arm
Smooth and Effortless Control
• Premium German gas spring arm with spring balance system and damping system
• Achieves smooth, accurate, and stable suspension in any position
• Quickly returns to balance even with added accessories
• Minimizes intraoperative repositioning, allowing clinicians to stay focused on treatment.
German SCHOTT Lens
Crystal-Clear Visualization in True Color
• Equipped with German SCHOTT lenses with apochromatic and multi-layer optical coating system
• Delivers high-contrast, crystal-clear images with excellent color fidelity
• Stable performance under various lighting conditions, ensuring sharp visualization of the surgical field
• Enhances clinical diagnostics with accurate tissue color reproductio
Stepless Zoom System
0.4x to 2.6x
continuous zoom range
Delivers uninterrupted field of view with magnification from
1.25x to 22.5x
380mm Wide-Range
Varifocal Objective Lens
• Working distance range of 190–570mm
• Enables easy focusing on anterior/posterior teeth and upper/lower jaws without repositioning
• Focus knob positioned near the handle for quick, single-handed adjustment
iSee Pro Standard
11.500 EUR ex
iSee Pro Medium
13.500 EUR ex
iSee Pro High
15.500 EUR ex
Functions | Configurations | Standard | Medium | High |
|---|---|---|---|---|
Magnification | 0.4x-2.6x stepless zoom system | ✔️ | ✔️ | ✔️ |
Total Magnification | Eyepiece: 12.5X; Objective lens: F = 190~570mm; Total Magnification: 1.25X~22.5X | ✔️ | ✔️ | ✔️ |
Binocular Tube | 0-210° inclinable binocular tube | ✔️ | ✔️ | ✔️ |
Eyepiece | Diopter adjustment range: ±7D; 12.5×/17B widefield eyepieces; Interpupillary distance adjustment range: 52–75 mm | ✔️ | ✔️ | ✔️ |
Objective Lens | F=190-570mm | ✔️ | ✔️ | ✔️ |
Illuminance | ≥100,000LX | ✔️ | ✔️ | ✔️ |
Light Spot | Spot diameter: Φ20mm - Φ190mm, and the spot diameter is stepless adjustable. | ✔️ | ✔️ | ✔️ |
Filed Of View | Φ155mm-Φ10.5mm | ✔️ | ✔️ | ✔️ |
Filter | Orange & Green Filter | ✔️ | ✔️ | ✔️ |
Free Floating
Balancing System | Spring balance system+Damping system | ✔️ | ✔️ | ✔️ |
Illumination System | LED lighting source with continuously adjustable brightness and a service life of no less than 60,000 hours. | ✔️ | ✔️ | ✔️ |
Automatic
Switching Device | Integrated automatic switch suspension arm, turns off automatically at maximum height. | ✔️ | ✔️ | ✔️ |
Mounting | Pedestal roller type, wall-mounted type, ceiling-mounted type. | ✔️ | ✔️ | ✔️ |
Integrated
Video System | Four-in-one integrated module = 4K HD video system+30° Extender+Splitter+Rotator | ✔️ | ||
Recording System | SD card/ U disk, for fast storage of moving/still images and videos | ✔️ | ||
External
imaging Solutions | 30° extender integrated stereo beam splitter(Solit ratio 2:8 or 5:5) | ✔️ | ||
External
imaging Solutions | Digital camere adapter, suitable for Canon, Nikon, Sony, etc. | ✔️ | ||
External
imaging Solutions | Rotator | ✔️ | ||
External
imaging Solutions | Digital camera built-in power supply and HD cable | ✔️ | ||
External
imaging Solutions | Camere wireless foot pedal (Sony/Canon/Nikon) | ✔️ |
